arlin ESU-D2R earth leakage insulation resistance monitoring relay

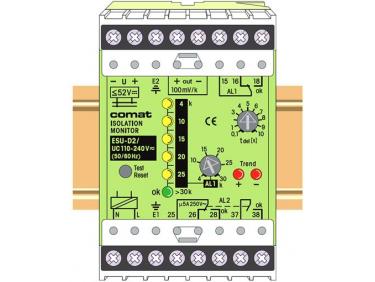

Picture shown is a representation only.
Earth Leakage Monitoring Relay for Railways ESU-D2R
- Insulation resistance monitoring relay for unearthed DC lines
- Railways approved to EN 50155 and EN 61373
- Pre alarm 1 CO and main alarm 1 NO + 1 CO contact outputs 5 A / 250 V
- Monitoring of earth interruption / leakage on the device
- Measures single or combined resistances occurring against + or – pole of the network
- Analogue output terminals 5 V for external display of the earthing resistance (0,1 V/kΩ)
- Adjustable alarm delay
- Proved reliability in rolling stock applications
- Non-railways version available: see ESU-D2
SCROLL DOWN & SELECT PART NUMBER
Click on image to enlarge
Purchase items here
| QTY* | PART No. | DESCRIPTION |
|---|---|---|
