  • Nylon PCB Support, Double Barb Spring Grip,Snap in, SPDJ
arlin SPDJ04 pcb support dual locking barb snap-in
arlin SPDJ04 pcb support dual locking barb snap-in
Picture shown is a representation only.

Nylon PCB Support, Double Barb Spring Grip,Snap in, SPDJ

  • PCB Support
  • Nylon 6/6
  • Firm Spring Grip
  • Snap-in
  • Double Barb giving quick mounting of PCB
  • PCB Hole Size - 4mm
  • Chassis Hole Size - 4.8mm

SCROLL DOWN & SELECT PART NUMBER

Click on image to enlarge

Purchase items here

QTY* PART No. DESCRIPTION
SPDJ0406 Nylon PCB Support, Snap-in, Double Barb, 6.4mm PCB Spacing (1/4 Add to Basket
SPDJ0413 Nylon PCB Support, Snap-in, Double Barb, 12.7mm PCB Spacing (1/2 Add to Basket
SPDJ0426 Nylon PCB Support, Snap-in, Double Barb, 25.4mm PCB Spacing (1 Add to Basket

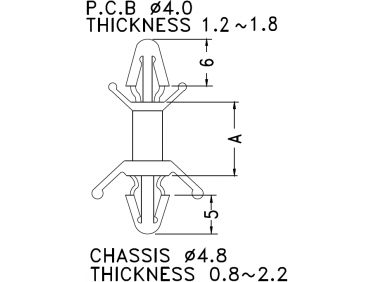

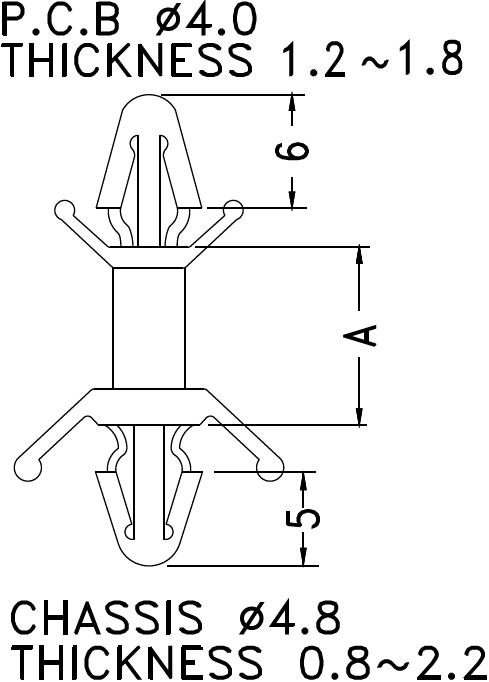

Specification



PART NO. PCB SPACING (A)
SPDJ0406 6.4mmm
SPDJ0413 14.2mm
SPDJ0425 26MM
