arlin SIS force-guided contacts safety relay
arlin SIS force-guided contacts safety relay

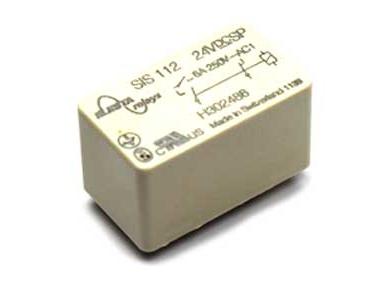

Picture shown is a representation only.

Safety Relay SIS 2 Force Guided 6A Contacts

Very compact SIS2 series, 2-pole relays with forcibly guided contacts in accordance with EN 50205. In addition to their very small dimensions, this relay series stands out thanks to its high shock resistance, large exciting voltage range and low coil loss power, as well as its high switching reliability due to its notched crown contact.
  • Contact configuration 1NO / 1NC
  • Switching current range 5 mA to 6 A
  • Coil voltage 5 VDC to 60 VDC (non-standard coils available upon request)
  • Coil power  0.27W
  • Design (LxWxH) 29.2 x 16.6 x 16.5 mm
  • Shockproof EN 50155 for railway applications
  • Approvals: UL, cUL, SEV, TÜV
Areas of application: medical technology, sensors, interfaces, transportation, motion control, door control.
Swiss quality, from Elesta GmbH. http://www.elesta-gmbh.com
Contact Arlin for availability, project pricing and assistance.

SCROLL DOWN & SELECT PART NUMBER

Click on image to enlarge

Purchase items here

QTY* PART No. DESCRIPTION
SIS112-5VDC PCB Compact Safety Relay 5VDC Coil 2 Pole 6A: 1 x N/O, 1 x N/C Force-guided Contacts Add to Basket
SIS112-9VDC PCB Compact Safety Relay 9VDC Coil 2 Pole 6A: 1 x N/O, 1 x N/C Force-guided Contacts Add to Basket
SIS112-12VDC PCB Compact Safety Relay 12VDC Coil 2 Pole 6A: 1 x N/O, 1 x N/C Force-guided Contacts Add to Basket
SIS112-24VDC PCB Compact Safety Relay 24VDC Coil 2 Pole 6A: 1 x N/O, 1 x N/C Force-guided Contacts Add to Basket
SIS112-18VDC PCB Compact Safety Relay 18VDC Coil 2 Pole 6A: 1 x N/O, 1 x N/C Force-guided Contacts Add to Basket
SIS112-48VDC PCB Compact Safety Relay 48VDC Coil 2 Pole 6A: 1 x N/O, 1 x N/C Force-guided Contacts Add to Basket
SIS112-60VDC PCB Compact Safety Relay 60VDC Coil 2 Pole 6A: 1 x N/O, 1 x N/C Force-guided Contacts Add to Basket
